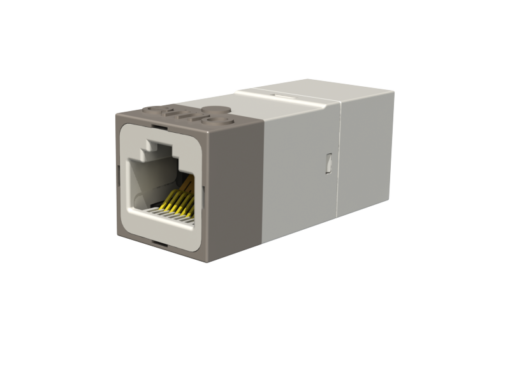

EN-70e

$126.72

Economy plug-in isolator
Grey cap

Description

Ultra-compact Network Isolator

  • Ultra-compact
  • Gigabit Ethernet
  • 4.6 kV AC dielectric strength
  • 8.5 kV DC electric strength
  • Suitable for stand-alone operation as well as incorporation into racks, devices, and products
  • Suitable for use within medical supply units
  • Conforms to IEC 60601-1 (3rd Edition)
  • UL Recognized Component
  • ISO 11801 Class D Ethernet performance is achievable in permanent links which include the isolator
  • Extremely low insertion losses; thereby total cable lengths of 100 metres are achievable
  • Suitable for devices with supply voltages up to 400 V AC
  • RoHS compliant
  • 100% inspection by our Quality Control



EN-70e Product Specifications

 Data Sheet (PDF):  (1.9 MB)   CAD-Model (Step):  (194 kb)
