Description

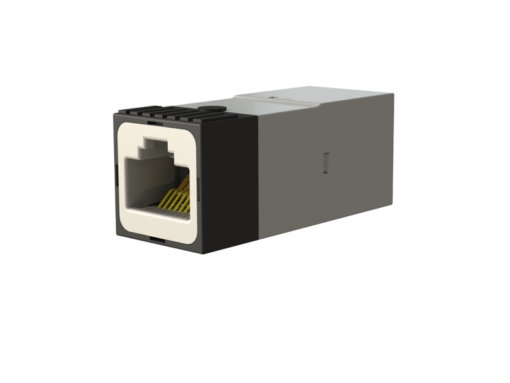

Ultra-compact Network Isolator
- Ultracompact
- Gigabit Ethernet
- 5.0 kV AC dielectric strength
- 8.5 kV DC electric strength
- Suitable for stand-alone operation as well as incorporation into racks, devices, and products
- Suitable for use within medical supply units
- Conforms to IEC 60601-1 (3rd Edition)
- UL Recognized Component
- ISO 11801 Class D Ethernet performance is achievable in permanent links which include the isolator
- Extremely low insertion losses; thereby total cable lengths of 100 metres are achievable
- Transient voltage suppression on all signal lines
- Suitable for devices with supply voltages up to 400 V AC
- RoHS compliant
- 100% inspection by our Quality Control
EN-70HD Product Specifications
Data Sheet (PDF):
(1.9 MB) CAD-Model (Step):
(194 kb)
